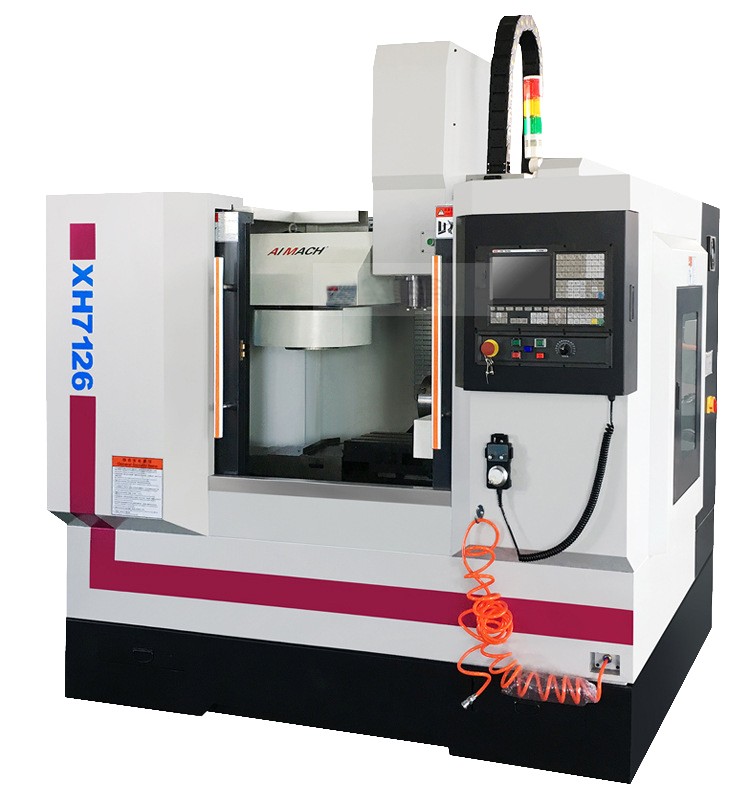

小型数控XK7126数控铣
立即咨询
联系热线 15863228629
| Specifications | Units | XK7126 | XH7126 |
| 工作台尺寸Table size | mm | 800x260 | 800x260 |
| X轴行程X axis travel | mm | 450 | 450 |
| Y轴行程Y axis travel | mm | 320 | 320 |
| Z轴行程Z axis travel | mm | 400 | 400 |
| 工作台更大承重Max. worktable load | kg | 200 | 200 |
| T型槽（数量-宽度-间隙） | 3-14x80 | 3-14x80 | |
| T slot(number-width-pitch) | |||
| 主轴转速Max. spindle speed | rpm | 6000 | 6000 |
| 主轴锥度Spindle taper | mm | BT40 | BT40 |
| 主电机功率Main motor power | kw | 3.7 | 3.7 |
| X/Y/Z轴快移速度 | m/min | 15/15/15 | 15/15/15 |
| X/Y/Z rapid traverse speed | |||
| 切削进给速度Cutting feed speed | mm/min | 1-6000 | 1-6000 |
| 导轨形式Guide rail type | Linear rail | Linear rail | |
| 主轴中心到立柱表面距离 | mm | 360 | 360 |
| Distance from spindle axis to column surface | |||
| 主轴端部到工作台表面距离 | mm | 90-520 | 90-520 |
| Distance between spindle nose and worktable surface | |||
| 定位精度Positioning accuracy | mm | ±0.015 | ±0.015 |
| 重复定位精度Repeat positioning accuracy | mm | ±0.0075 | ±0.0075 |
| 刀库Tool magazine | - | 12 Armless/(Optional: Arm 16 ) | |
| 刀具更大直径Max. tool diameter | mm | - | 130 |
| 刀具更大重量Max.tool weight | kg | - | 8 |
| 机床重量Machine weight | kg | 2100 | 2400 |
| 外形尺寸Overall dimension | mm | 2200x1900x2200 | 2200x1900x2200 |
